Cable Tray Series
Ladder, tray, trough, long-span, shaft and matching accessory systems
Overview
Hengdi cable tray systems cover ladder, perforated tray, enclosed trough, long-span and vertical shaft applications. Matching bends, tees, crosses, reducers, covers and supports complete project routing layouts.
Key Highlights
- Ladder, perforated tray and enclosed trough structures
- Long-span and vertical cable-shaft systems
- Complete routing and installation accessories
- Dimensions and finishes are confirmed per project
Key Specifications
- Main families
- XQJ-T / XQJ-P / XQJ-C / DJ / XQJ-DSJ
- Representative widths
- 50–1,200 mm, series-dependent
- Surface options
- Galvanized / coated / stainless steel / aluminum alloy, project-dependent
Series & Families

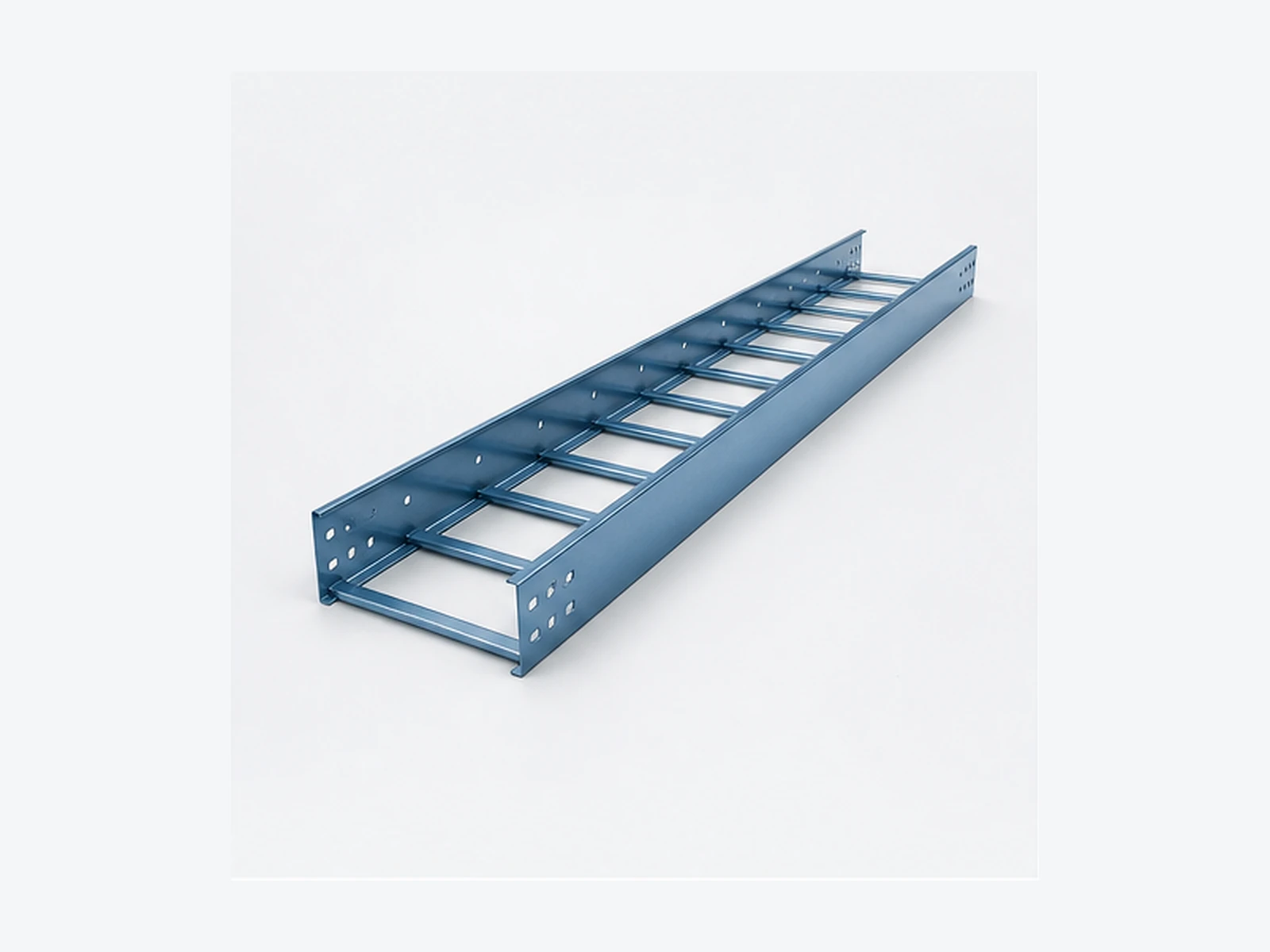

XQJ-T Ladder Type
Open ladder cable support for power and large-diameter cable routing.
Models: Straight sections, horizontal bends, tees and matching fittings
XQJ-P Perforated Tray Type
Ventilated perforated tray for general industrial cable routing.
Models: Straight sections, bends, tees and matching fittings
XQJ-C Trough Type
Enclosed cable support for communication, control and sensitive-system cables.
Models: Straight sections, horizontal bends, tees and matching fittings
Long-Span & Cable Shaft
Wider-support-spacing tray structures and vertical cable-shaft assemblies.
Models: DJ and XQJ-DSJ catalog families
